Low Frequency 3 Axis Vibrating Table , Vibration Shaker System For Fire Extinguisher

Brand Name : ASLI

Model Number : ES-1

Certification : TUV SGS CE ISO

Place of Origin : China

MOQ : 1set

Price : Nigotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50sets per month

Delivery Time : 30 working days

Packaging Details : Standard wood case

Rated Acceleration : 0-5MM

Vibration Table : W500*D500mm(or customized)

Application : fire extinguisher vibration test

Power : AC380V

frequency range : max 2000hz

Characteristics : time timing and countdown display function

Contact Now

Low frequency 3 axis vibrating table / economic vibration shaker system for Fire extinguisher



Product use:

Electromagnetic vibration platform is widely used in national
defense, aviation, communications, electronics, automobile, home appliances, and other industries. This type of equipment is used to detect early faults, simulate actual working condition assessment and structural strength test, with wide application range, wide application surface and reliable test results. Sine wave, FM, sweep, scalable, doubling, logarithmic, time control.


Product

Characteristics:

Using the most advanced and simple operation technology, fixed
frequency, sweep frequency is convenient for switching at any time

It has the time timing and countdown display function

The touch controller is simple and convenient to solves the disadvantages of digital explicit operation

The control parameters are displayed in real time without manual intervention.

The console base adopts vibration absorber for easy installation and smooth operation without foot fixed screws

The embedded amplitude prediction procedure and amplitude adjustment are easy

four-point synchronous vibration, uniform counter vibration

Stepless adjustment amplitude, fixed frequency and sweep operation functions meet various test requirements in different industries

Add the anti-interference circuit to solve the interference to the control circuit due to the strong electromagnetic field

Curve display function to view the frequency waveform changes at any time



Technical indicators:
Test load: 100KG
Vibration direction: X,Y, Z three axis
Countertop Size (m m): 500×500
Amplitude (P-P): 0-5mm (random, varying with frequency, adjustable)
Sweep sweep: 1-600Hz can be set arbitrarily (true standard sweep back and forth)
Maximum acceleration: 20g
Index function: FM, sweep, time
Precision degree: Frequency can be displayed to 0.1Hz, precision of 0.1Hz

Frequency work
(0.1Hz):

 Multiples increase low to high to low to low / recyclable

Loggarithmic work
(0.1Hz):

 ① Down-to-up to down-to down-to-3 modes logarithmic / recyclable
Vibration wave form: Sine wave
Time control: Time can be set
Power supply: 1.2KW

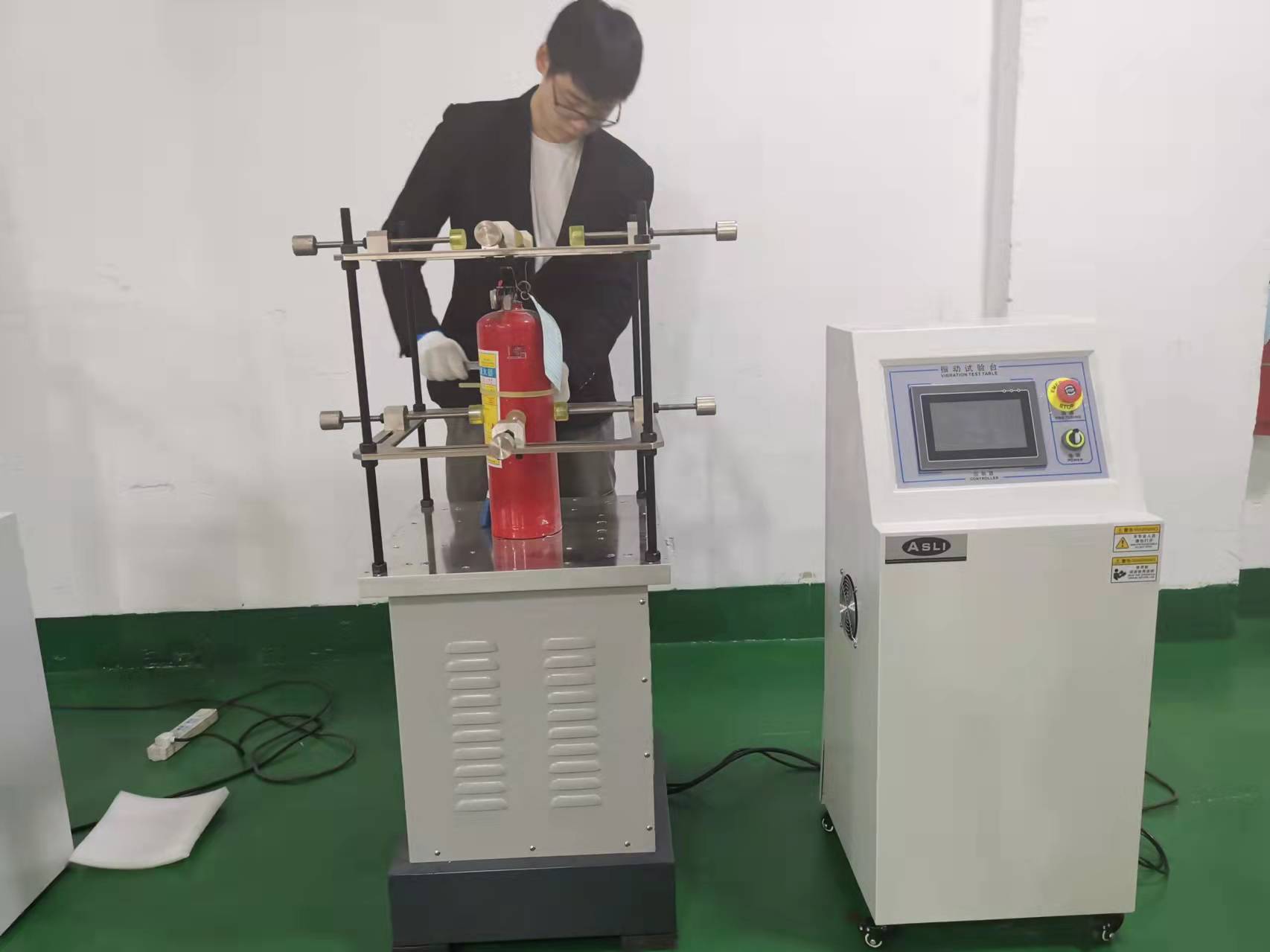

Product appearance: As below photos
