Carton Box Computer Servo Compressive Tester / Corrugated Carton Compression Resist machine
Carton Box Computer Servo Compressive Tester / Corrugated Carton Compression Resist machineTechnical Parameters
Application:
Carton compressive strength the most important quality index in packaging requirements.
This machine is suitable for products with corrugated carton packaging . To check the burst strength
of cartons , also can test synthetic leather, cloth , etc.
Carton Box Computer Servo Compressive Tester / Corrugated Carton Compression Resist machineTechnical Parameters:
| Carton Box Computer Servo Compressive Tester / Corrugated Carton Compression Resist machine Tester |
| Model | AS-PC-1000 |
| Unit (switchable) | Kg, Lb, N |
| Capacity (optional) | 1000kg |
| Load Resolution | 1/250,000 |
| Stroke (exclude the grips) | 400 mm |
| Load Accuracy | ≤0.5% |
| Test Space (L×W×H) | 1200×1200×1200mm |
| Speed of Compression | 250-300mm/min |
| Operation Mode | PC(PC Connected by RS485 Interface) |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | AC Frequency Conversion Motor Ordinary screw rod |
| Dimension (L×W×H) | Host: W1500xH2100xD1220mm Cabinet: W1150xH1350xD640mm |
| Power | AC380V, 3 Phases, 5 lines |
| Weight | Approx.700kg |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
※With three languages in Simplified Chinese, and English, the software interface can be switched easily;
※Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
※The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
※Choosing translational, comparative mode at the same time to make a number of curve data comparison;
※With a variety of measurement units, Measure In Imperial & Metric are switchable;
※With self-return & auto-correction function;
※With automatic magnification function, in order to achieve the most appropriate size of the graphics;
※With the user-defined Test methods; with experimental data analysis function;
It can do test of compression, bending, pressure holding & fatigue.
※it can test the crush instantaneously and stop automatically.
※ Simple computer can be used with software dongle ,and join with host box.
Warranty: One year free warranty under normal use(Except natural disaster or man-made damage)long-life maintenance.
Product Tags:
|
|

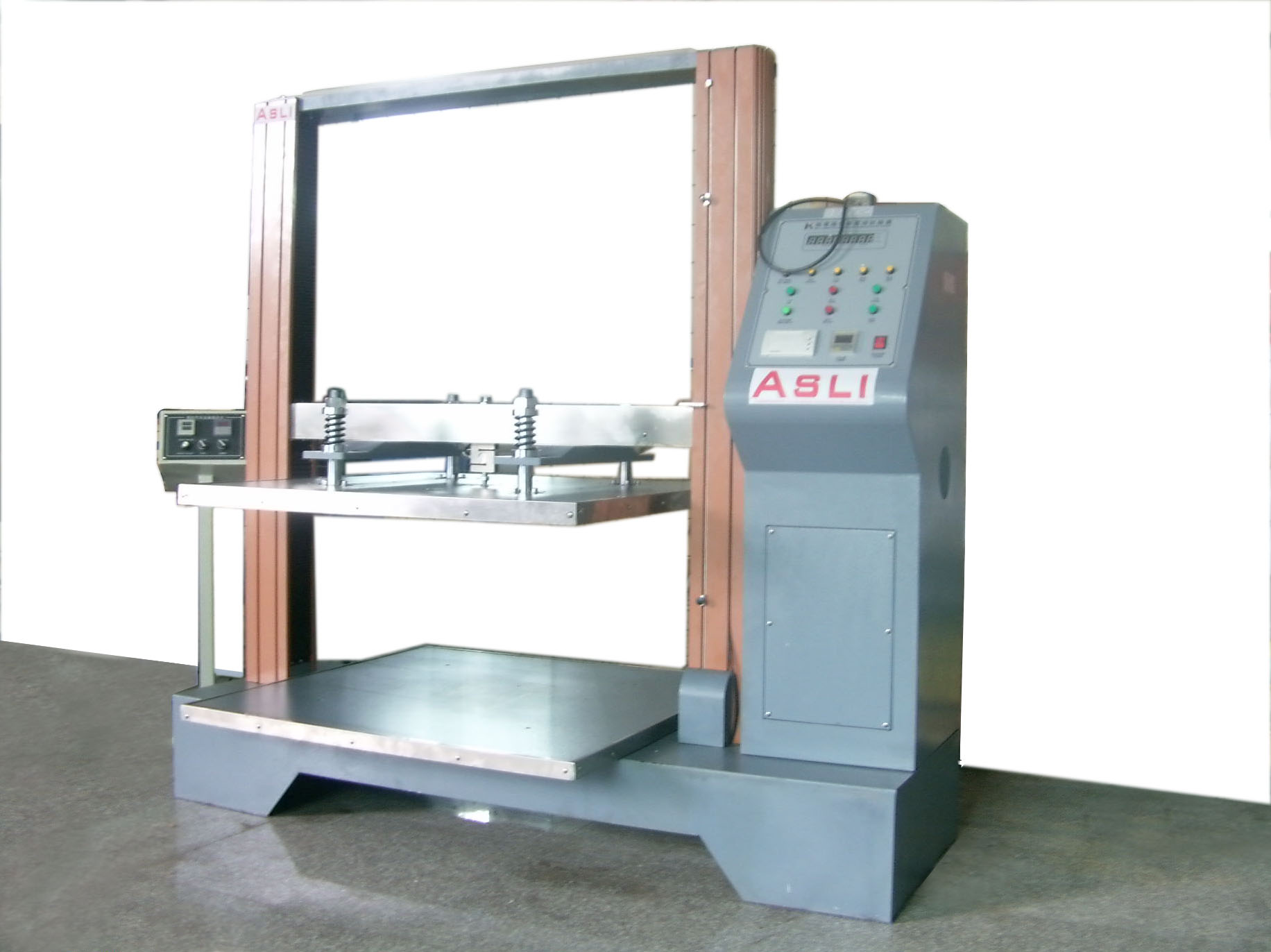

Carton Box Computer Servo Compressive Test Machine / Corrugated Carton Compression Resist machine Images
|
