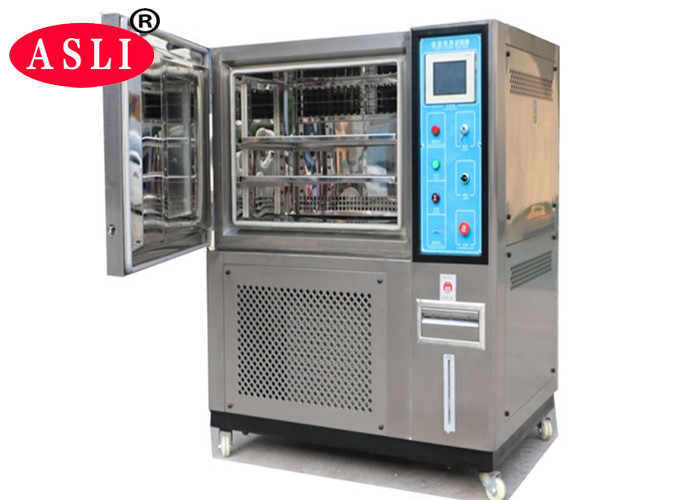

Programmable Humidity Temperature Test Chamber Air Cooling
Temperature Humidity Chamber Features:
1. Available in Chinese and English LCD touch screen, easy operation and program.
2. Able to display the relative date and information of the whole operating system in running mode, graphic display, precautions, maintenance and troubleshooting appear on the screen instantly.
3. Temperature humidity Test chamber The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
4. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operation life of the machine and decrease the failure rate.
5. Water supply adopts automatic watering system, circulating water supply together with water filter
Temperature Humidity Chamber Standard Features:
Stainless# 304 steel
Foam-insulated door for rigidity and long life
Observation Window with frost free function
High performance refrigeration system
Easy user interface for TEMI-880 PLC controller
One 100mm cable port/ Customer specified
PID controlled-Stainless Steel Humidifier
DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40 °C
USB port for data output
Anti-explosive interior lamps
Data logging chart recorders, paperless recorders stored data in the PLC.
Temperature Humidity Chamber Technical Details:
| Model | TH-80 (A~F) | TH-150 (A~F) | TH-225 (A~F) | TH-408 (A~F) | TH-800 (A~F) | TH-1000 (A~F) |
| Internal Dimension WxHxD (mm) | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| Enternal Dimension WxHxD (mm) | 950x1650 x950 | 1050x1750 x1050 | 1200x1900 x1150 | 1200x1950 x1350 | 1600x2000 x1450 | 1600x2100 x1450 |
| Temperature Range | Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC) High Temperature 150ºC |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier) |
| Analytic Accuracy/ Distribution uniformity of temperature and humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5ºC; ±2.5% R.H. |
| Temperature Rising/Falling Speed Rate | Temperature rising approx. 0.1~3.0ºC/min / temperature falling approx. 0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºC per minute is a special optional condition) |
| Inner and Outer Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling/single segment compressor (-40ºC, double segment compressor -70ºC) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC220V 1ø3 lines, 50/60HZ , AC380V 3ø 5 lines , 50/60HZ |
| Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |
Product Tags:
|
|

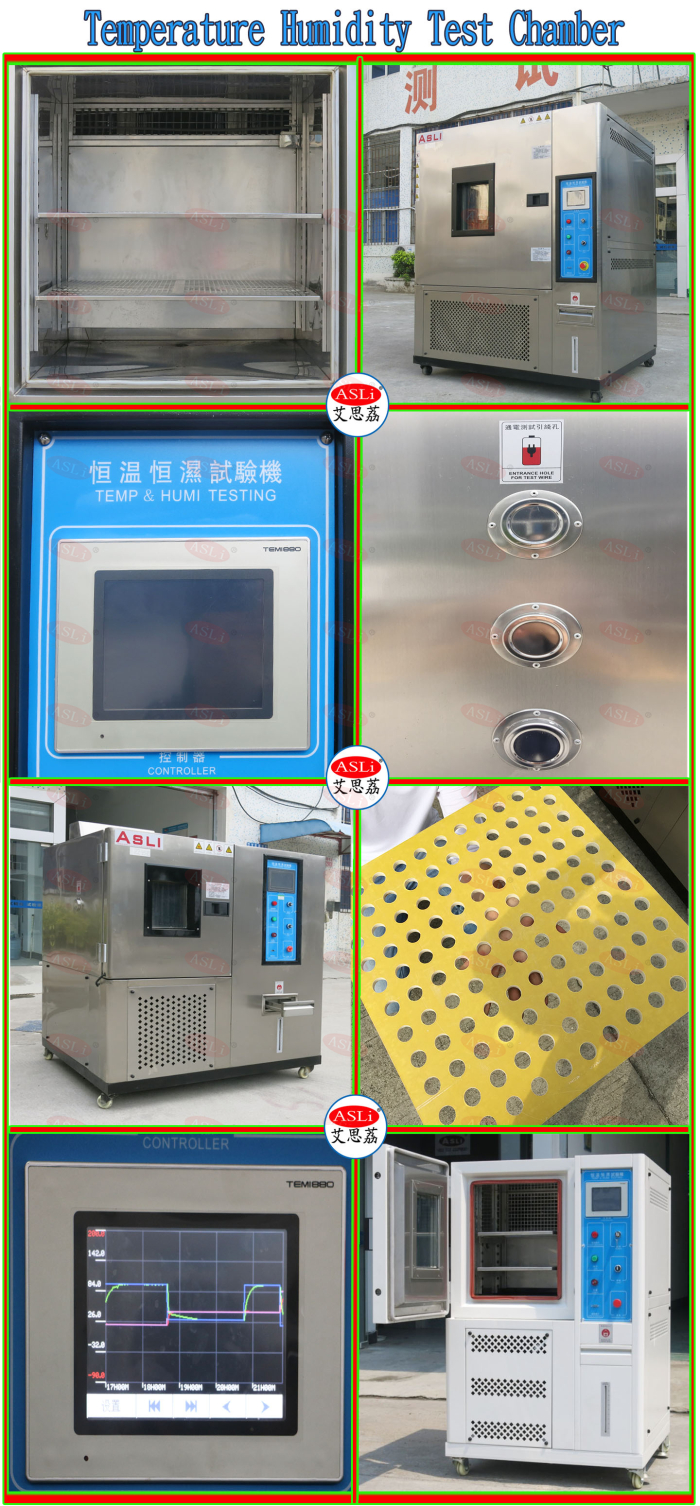

Programmable Humidity Temperature Test Chamber Air Cooling Images
|
