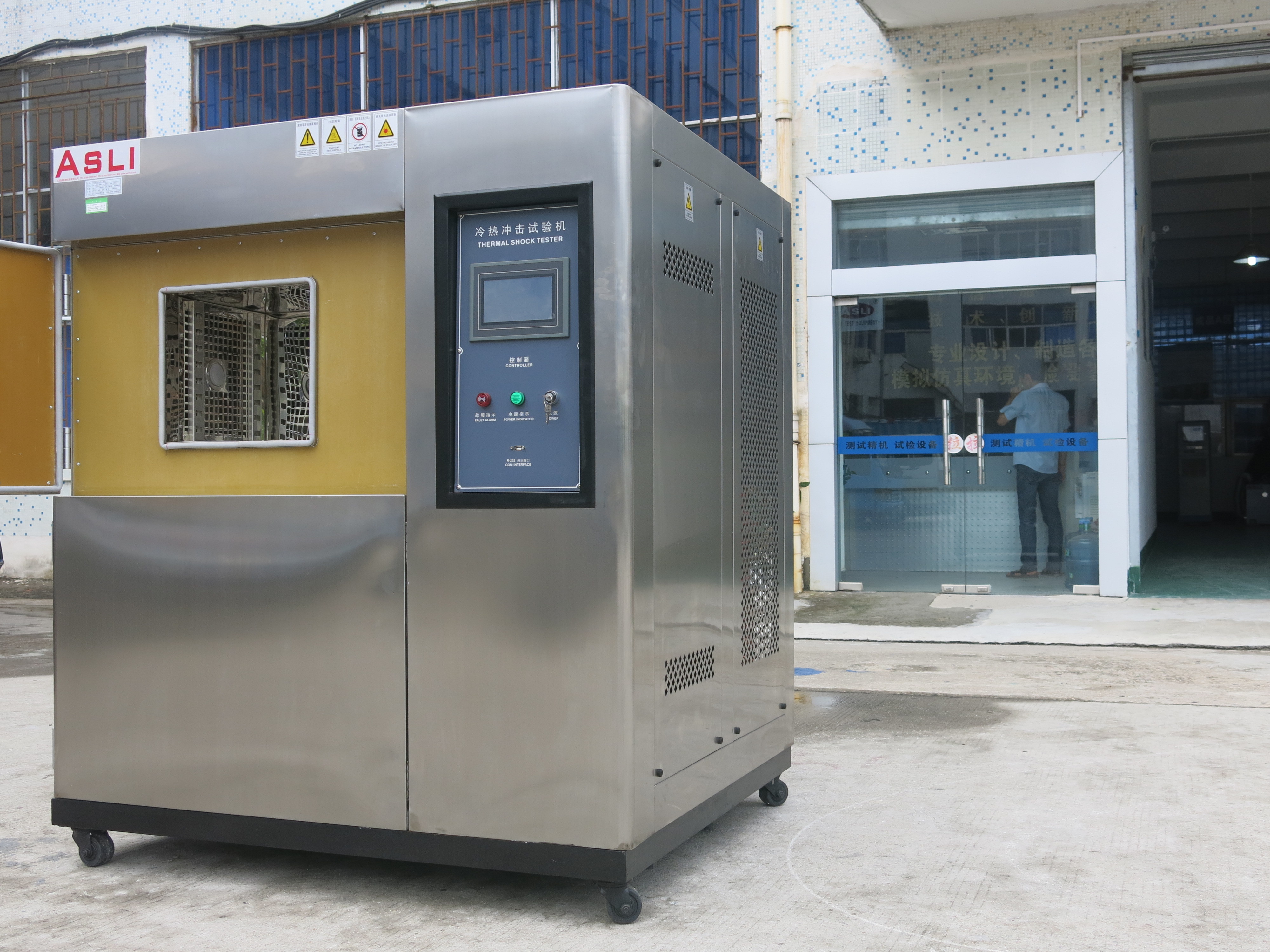

| Model | TS-45(A~C) | TS-80(A~C) | TS-150(A~C) | TS-252(A~C) | TS-450(A~C) |
| Internal Dimension WxHxD ( mm) | 400x350x350 | 500x400x400 | 600x500x500 | 700x600x600 | 800x750x750 |
| External Dimension WxHxD (mm) | 1400x1800x1400 | 1550x1950x1550 | 1600x2000x1700 | 1700x2100x1750 | 1800x2200x1900 |
| Temperature Range of Testing zone | Type A: -40 °C~+150°C (200°C is optional) | Type B:-55°C ~+150°C (200°C is optional) | Type C:-65°C ~+150°C (200°C is optional) |
| High temperature Range of Testing zone: +60°C to +150°C,(200°C is optional); Low Temperature Range of Testing Zone: -10°C to -40°C/-55°C/-65°C |
| Exposure Time of High/Low Temperature | Exposure Time of High Temperature:+60°C to +150°C (200°C is Optional),needs about 30Mins |
| Exposure Time of Low Temperature:-10°C to A-40°C/ B -55°C/ C -65°C, needs about 30Mins |
| Temperature of hot zone/Heating Time | RT~200°C/About , needs about 45mins |
| Temperature of cold zone/Cooling Time | RT~ -75°C/ About ,needs about 100mins |
| Temperature Recovery Time/ Conversion Time | ≤5min /≤5sec |
| Control Accuracy / Distribution Uniformity | ±0.5°C/±2°C |
| Material | Interior material is SUS 304# stainless steel,exterior is stainless steel or SEE cold-rolled steel with paint coated. |
| Insulation Material | High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
| Mechanics | P.I.D+S.S.R+ Micro-computer balanced temperature control system |
| Cooling System | Semi-hermetic double-stage compressor(water-cooled type) ; Hermetic double-stage compressor (air-cooled type) |
| Security Protection Devices | Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator high-pressure protective switch, failure warning system, electronic alarm |
| Accessories | viewing window (Optional |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC220V 50/60HZ, AC380V 50/60HZ |
| Weight (Approx. kg) | 450 | 600 | 750 | 950 | 1200 |
