Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber / Laboratory Oven

ASLi (CHINA) TEST EQUIPMENT CO., LTD
Contact Now

Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber / Laboratory Oven

Brand Name : ASLi

Model Number : XU-1000

Certification : CE TUV SGS BV

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 65 sets per month

Delivery Time : 20~30 workdays

Packaging Details : standard export poly wood case packaging

Inner Size : 1000x1000x1000

External Size : 1500x2000x1400

Tube : Xenon Lamp+UV

Tue Using Life : 1600H

Tube Power : 1KW/ 6KW

Illumination : 0.35-1200W/m2

Black Panel : BPT 40~120 Deg C

Humidity : 20%~98%

Roating Speed : 1~5RMP adjustable

Contact Now



Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber / Laboratory Oven





Main product including:

Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc



Main technical dates about Xenon chamber :


Model

XU - 1000

 Internal Dimension
WxHxD (mm)

900x900x900

 External Dimension
 WxHxD (mm)

1500x2000x1400

 Tube Using Life (H)

1500

 Tube Power

1KW/6KW

 Illumination  intensity

340nm
0.35~0.6w/m2



Full spectrum
1200±200w/m2

 Lighting Filter Type

Inner filter







Quartz

Outer filter



Quartz

 Simulated  Test Status







Test samples:
Explore under
outer space

 Cooling System

Water cooling

 Temperature Control
 Range of the Test
Cabinet

Black panel temperature : BPT 40~120°C(±3°C)

Black standard temperature : BST 38~120°C(±3°C)

 Humidity Control
 Range of the
Test Cabinet

Humidity when lighting:20%R.H.~75%R.H. (± 5%R.H.)

Humidity when dark :60%R.H.~95%R.H. (± 5%R.H.)

 Rotating Speed
of the Samples
Holder(RPM)

1~5 adjustable

 Diameter of
Sample Shelf(mm)

500±50

 Sunlight Exposure
Cycle

0.01~999 hours 59mins

 Raining Period
/ Time

Raining Period:1~240mins,discontinuous-type, adjustable

Raining Time:1~9999mins, adjustable, water spray pressure 70~130Kpa

 Spray Water Flow (L/min)

1~2.4

 Explore Area(cm2)

7500

 Power

 AC 380V, 50/60HZ , 3Φ 5 Lines





 Features about xenon test chamber:

1.ASLi Brand xenon lamp weather resistance test chamber withadvanced design technology and concept.

2. ASLi Brand xenon lamp weather resistance test chamber with excellent technology of producing and outstanding system of quality management.

3. ASLi Brand xenon lamp weather resistance test chamber can be the most realistic simulated solar spectrum.
including ultraviolet, visible and infrared.

4. ASLi Brand xenon lamp weather resistance test chamber tested in the range of the full spectrum, necessary for most textile sun and color fastness test.

5. ASLi Brand xenon lamp weather resistance test chamber can determine the color fastness and aging to sunlight, weather resistance, etc.


Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber / Laboratory Oven


ASLi main products of xenon arc testing:


Established in 1988, ASLi (China) Test Equipment Co., Ltd  is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products .



Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber / Laboratory Oven



If you have any question about the xenon arc chamber, please contact with us ,thank you.





Product Tags:

environmental test equipment



environmental testing chamber


Buy cheap Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber / Laboratory Oven product

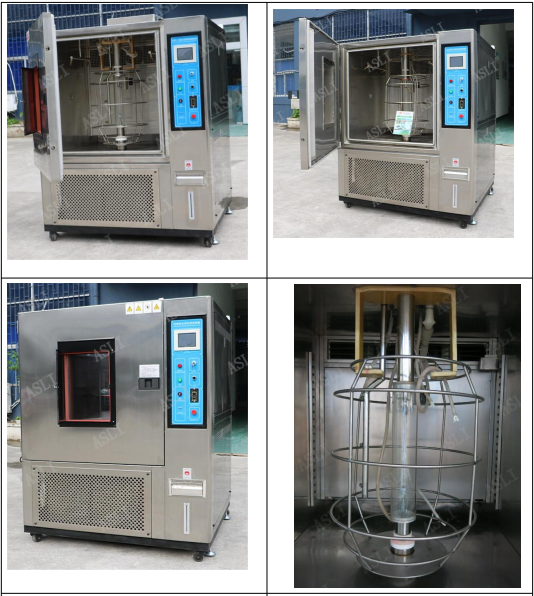

Lab Sum Simulation Acceleratled Xenon Lamp Aging Testing Chamber / Laboratory Oven Images
