Lab Mini Temperature Humidity Testing Equipment Air Cooling System

Product Categories
ASLi (CHINA) TEST EQUIPMENT CO., LTD
Contact Now

Lab Mini Temperature Humidity Testing Equipment Air Cooling System

Brand Name : AISILI

Model Number : DTH-80-A

Certification : CE , BV , SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 20 workdays

Packaging Details : Standard Export Plywood Case

Veiwing Window : 250*300mm

Cooling System : Air Cooling

Test Hole : Dia. 50mm

Type : Environmental Test

Temperature Range : 25~150C

Humidity Range : 20%~98%R.H.

Internal Dimension : W400*H500*D400mm

Power : AC220V

Contact Now



Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber





We ASLI company focuses on development and production of Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber, The machine specifically testing the materials in resistance of heat, cold, dry and moisture. Constant temperature and humidity testing machine is small size and not take up space.





Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber Technical Parameters

Model DTH-80A DTH-80B DTH-80C
Internal Dimensions WxHxD (mm) 400X500X400
External Dimensions WxHxD (mm) 1150X1150X1050
Temperature Range (RT+10°C) ~+150°C 0~+150°C -20 ~+150°C
Humidity Range 20%~98%R.H.

Indication Resolution/

Distribution

Uniformity of

Temperature

and Humidity

 0.1°C; 0.1% R.H / ±2.0°C; ±3.0% R.H.

Control Accuracy

of Temperature

and Humidity

 ±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity

Temperature rising approx. 0.1~3.0°C/min;

temperature falling approx. 0.1~1.5°C/min;
Interior and Exterior Material Interior material is SUS 304# stainless steel,exterior is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole(Optional), Recorder(optional),Water Purifier
Compressor French Tecumseh Brand, Germany Bizer Brand
Power AC 220V(±10%), 1 ph 3 Lines , 50/60HZ;
Weight (Kg) 75

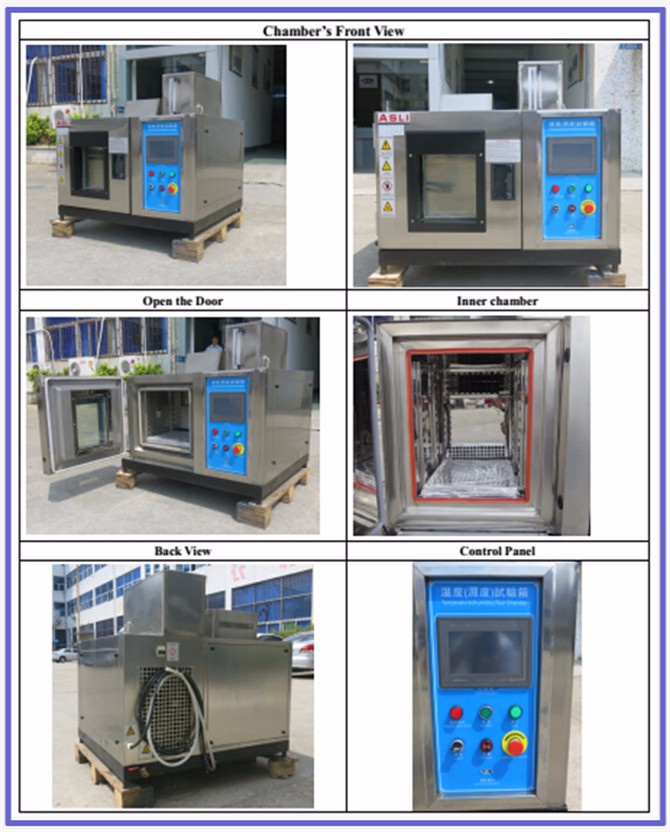

Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber Pictures

Lab Mini Temperature Humidity Testing Equipment Air Cooling System


Product Description


Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity, and applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.




Inner door with operation hole (optional)
Traveling cable port, Dia.50mm or 100mm
Sample Shelves, two layers
RS-232 or RS-485 communication




Mini Temperature Humidity Test Lab Equipment/Environmental Test Chamber Features :


1. Graceful appearance, circularly shaped body, surface treated with mist strips,.
2. Rectangular double-paned viewing window for the observation of sample under test,with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A.
6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.





Customers' Visit ASLi Factory:

Lab Mini Temperature Humidity Testing Equipment Air Cooling System
